ChamSys MagicQ Pro serija
Galingos, viskas – viename apšvietimo valdymo konsolės.

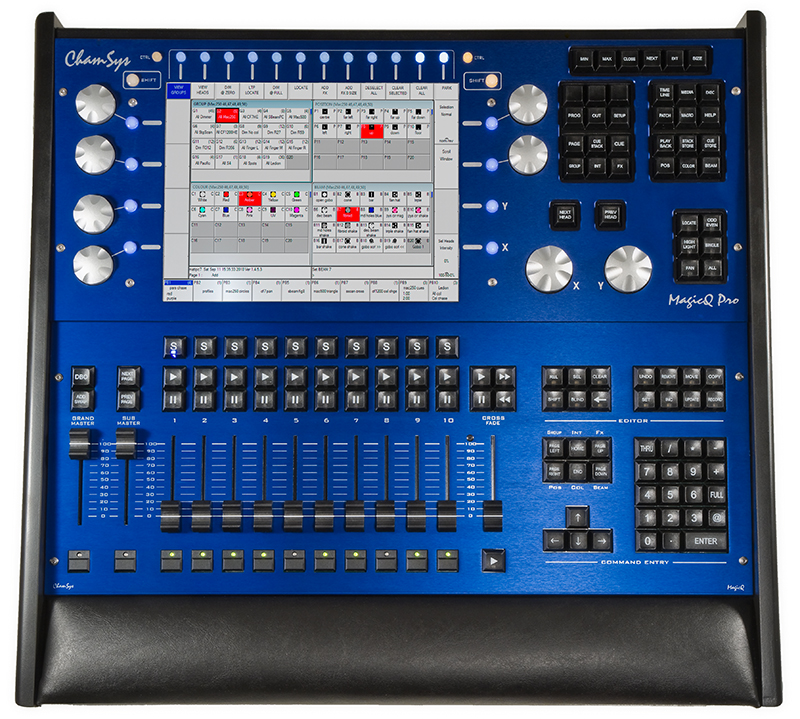

MagicQ MQ100 Pro-E
- 12 Universes including ArtNet, ACN and Pathport
- 10 Playbacks (202 virtual)
- Complete Console Solution
- In-built UPS
- Designed and manufactured in the UK
Universes: 12
Channels: 6144
Number of fixtures: Up to 6144
Cues: 5000
Cue Stacks: 2000
Palettes: 3096
Groups: 5000
Numbers of shows: Virtually unlimited
Media Server support: 50 (each different content)
Encoders: 8
Faders: 13
Network ports: 1
USB ports: 3
Direct DMX512 ports: 4
External monitor ports: 1
Dimmable LED console lamps: 2 Single Colour
Power input: 110 to 240 VAC
MagicQ MQ100 Pro 2014
- 64 Universes
- 10 Full Playbacks (202 virtual)
- In-built Ethernet Switch
- In-built UPS
- Solid State Drive
- Complete Console Solution
- MIDI, SMPTE, Audio ports
- Designed and manufactured in the UK
Universes: 64
Channels: 32768
Number of fixtures: Up to 32768
Cues: 5000
Cue Stacks: 2000
Palettes: 3096
Groups: 5000
Numbers of shows: Virtually unlimited
Media Server support: 50 (each different content)
Encoders: 8
Network ports: 4
USB ports: 5
Direct DMX512 ports: 4
External monitor port: Up to 1920×1080
Dual colour dimmable LED console lamps: 2 Dual Colour
Power input: 110 to 240 VAC
MagicQ MQ200 Pro 2014
- 64 Universes
- 34 Full Playbacks (Execute Variant 22 Fader, 36 button)
- In-built Ethernet Switch
- In-built UPS
- Solid State Drive
- Complete Console Solution
- Designed and manufactured in the UK
Universes: 64
Channels: 32768
Number of fixtures: Up to 32768
Cues: 5000
Cue Stacks: 2000
Palettes: 3096
Groups: 5000
Numbers of shows: Virtually unlimited
Media Server support: 50 (each different content)
Encoders: 8
Faders: 13+24 (Execute Variant 13+12)
Network ports: 4
USB ports: 4
Direct DMX512 ports: 4
External monitor port: Up to 1920×1080
Dimmable dual colour LED console lamps: 3
Power input: 110 to 240 VAC
MagicQ MQ300 Pro 2014
- 64 Universes
- 58 Full Playbacks(82 on Execute Variant – 46 Fader, 36 Button)
- In-built Ethernet Switch
- In-built UPS
- Solid State Drive
- Complete Console Solution
- Designed and manufactured in the UK
Universes: 64
Channels: 32768
Number of fixtures: Up to 32768
Cues: 5000
Cue Stacks: 2000
Palettes: 3096
Groups: 5000
Numbers of shows: Virtually unlimited
Media Server support: 50 (each different content)
Encoders: 8
Faders: 13+48 (Execute 13+24+12)
Network ports: 4
USB ports: 4
Direct DMX512 ports: 4
External monitor port: Upto 1920×1080
Dual colour dimmable LED console lamps: 4
Power input: 110 to 240 VAC

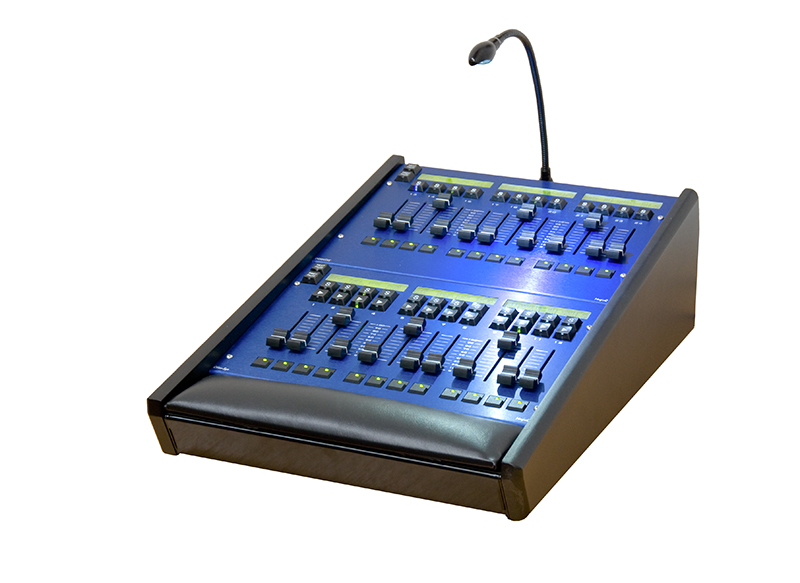

MagicQ Playback Wing
- 24 Playback Faders
- 24 Flash, Go/Back , Select Buttons
- Full Electronic Legending
- Connect to MagicQ Consoles
- Connect to MagicQ PC or Mac
- Up to 8 Wings per System
- Dual Playback Sections
- Split Playback Pages
- Separate Page Up/Down Buttons
- USB Connection
- Dimmable LED Desk Lamp
- Armrest Storage Compartment
- Designed and manufactured in the UK
LCD Displays: 6
Faders: 24
Flash Buttons: 24
Playback Buttons: 52
Dual colour dimmable Desk Lamp: 1
MagicQ Execute Wing
- 48 Physical Playbacks
- Multipurpose Button Matrix
- Full Electronic Legending
- Media Server Control
- Group/Palette Matrix
- Up to 4 Wings per System
- Four Playback Sections
- Split Playback Pages
- Separate Page Up/Down Buttons
- USB Connection
- Dimmable LED Desk Lamp
- Armrest Storage Compartment
- Designed and manufactured in the UK
LCD Displays: 12
Faders: 12
Flash Buttons: 48
Playback Buttons: 60
Menu/Page Buttons: 9
Dual colour dimmable Desk Lamp: 1
