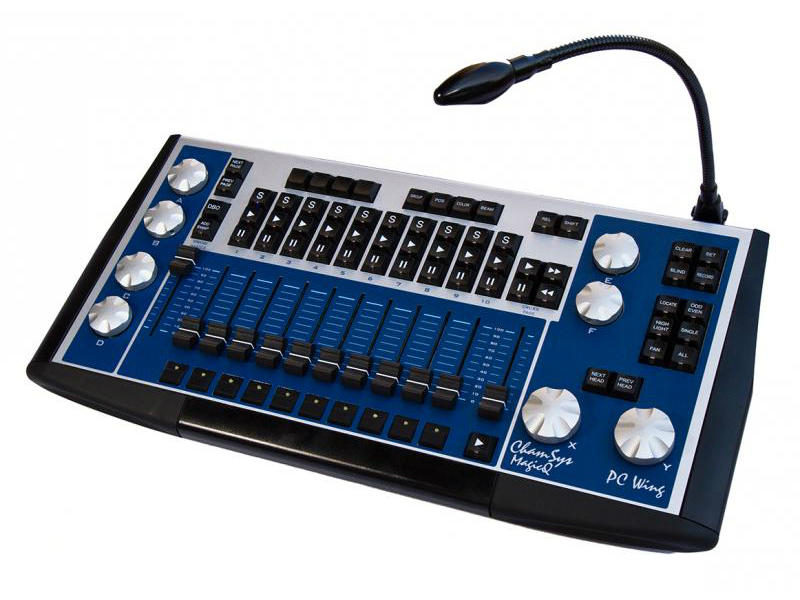

MagicQ PC Wing Compact

The MagicQ PC Wing Compact provides an immensely powerful PC based console in a compact size. Ideal for use by touring Lighting Designers, or for installing into theatres, clubs, and venues, the MagicQ PC Wing Compact builds on the MagicQ PC Wing as the PC solution of choice for controlling lighting, video and LED.

  • USB Connection to PC or Mac
  • Windows, Linux or OSX
  • Programming & Playback Buttons
  • 8 Encoders, 12 Faders
  • 2 Direct DMX Outputs
  • Addition of Previous Page, Group and four Macro Buttons
  • Dimmable LED Desk Lamp
  • 64 Universes
  • In-built Power Supply
  • In-built USB Hub
  • Audio Input
  • Fits Hand Luggage Restrictions
  • Improved Styling
  • Designed and manufactured in the UK

Features

Tracking / non-tracking option
Fixture, FX and gel library
In-built fixture editor
In-built media engine
LED pixel mapping
Fixture morphing and cloning
Rainbow colour picker (CMY, RGB, HSI)
Individual fade times on any channel
Easy fanning of parameters and times
Configurable faders – HTP, LTP, speed, size, masters
Theatre mark cues, split fades and inhibit masters
Client/server network architecture
Multiple console playback tracking
In-built web server
Remote console control
Visualiser support (including patch transfer)
Architectural zoning and day/date support
MIDI & SMPTE option
Optional Flight Case

Specification

Universes: 64
Channels: 32768
Number of fixtures: Up to 32768
Cues: 5000
Cue Stacks: 2000
Palettes: 3096
Groups: 5000
Media Server support: 50 (each different content)

Encoders: 8
Faders: 12
Buttons: 71
Direct DMX512 ports: 2
USB ports: 5 (4 output, one input)
Audio input: 1 channel (3.5mm jack)
Dimmable LED console lamps: 1 Dual Colour
Remote trigger input: 1
Security lock fixing: 1
Choice of colours: Blue
In-built Power Supply: 110 to 240 VAC

Width: 515mm
Depth: 257mm
Height (to back): 84mm
Height (to encoders): 88mm
Weight: 3.6kg

Flightcased dimensions:
Length:
370mm
Width:
 750mm
Height:
220mm
Weight:
6kg
