ChamSys MagicQ Compact serija
Tai naujos kartos mažų ir lengvų MagicQ konsolių serija, specialiai sukurta keliaujantiems apšvietimo dizaineriams, kadangi telpa net į biudžetinių oro linijų rankinį bagažą. Šiai serijai būdinga artima vartotojui, lanksti apšvietimo valdymo grafinė vartotojo sąsaja, media serverio prijungimo galimybės bei Pixel Mapper variklis, kuriuos galima rasti visose MagicQ konsolėse, panaudojant tą pačia programinę įrangą bei šou formatus, kas užtikrina suderinamumą tarp visų MagicQ produktų.
MagicQ Compact serijos konsolės surinktos tik iš aukštos kokybės komponentų, įskaitant didelio patvarumo metalines Neutrik jungtis. Taip pat turi integruotą , kompaktiško dydžio, lietimui jautrų ekraną, tokios pačios rezoliucijos kaip ir Magic MQ100 konsolės.
Išskirtinai MagicQ MQ40N konsolė paremta ARM technologija, naudojama naujausiuose mobiliuosiuose telefonuose bei planšetiniuose kompiuteriuose, tad MagicQ MQ40N reikalauja mažų energijos sąnaudų, todėl neturi ventiliatorių, kas užtikrina tylų prietaiso veikimą ir tinkamumą tyliems teatriniams pasirodymams.
MagicQ MQ40N
- 4 Universes
- 10 Playback faders, 200 pages
- 20 Execute buttons
- Complete DMX Lighting Console
- Fits Hand Luggage Restrictions
- Silent Operation
- Free MagicVis visualiser app
- Free MagicHD media player app
- Quick and Easy to Program
- Fully Featured Theatre Stacks
- Pixel Mapping
- iOS/Android remote app
Universes: 4
Channels: 2048
Number of fixtures: Up to 2048
Cues: 5000
Cue stacks: 2000
Palettes: 4096
Groups: 5000
Numbers of shows: Virtually unlimited
Encoders: 8
Faders: 12
Rear panel USB ports: 4
Audio input (1 channel, 7 band): Yes
Network ports: 1
Display ports: 1 VGA (fixed resolution 1024×768, non touch)
Desk lamp: 1 dual colour
Dust cover: 1
Power input: 110 to 240 VAC
Width: 525mm (20.7″)
Depth: 385mm (15.2″)
Height: 140mm (5.5″)
Weight: 6.5kg (14.3lb)
Flightcased dimensions:
Width: 600mm (23.6″)
Depth: 520mm (20.5″)
Height: 240mm (9.5″)
Weight: 15kg (33lb)

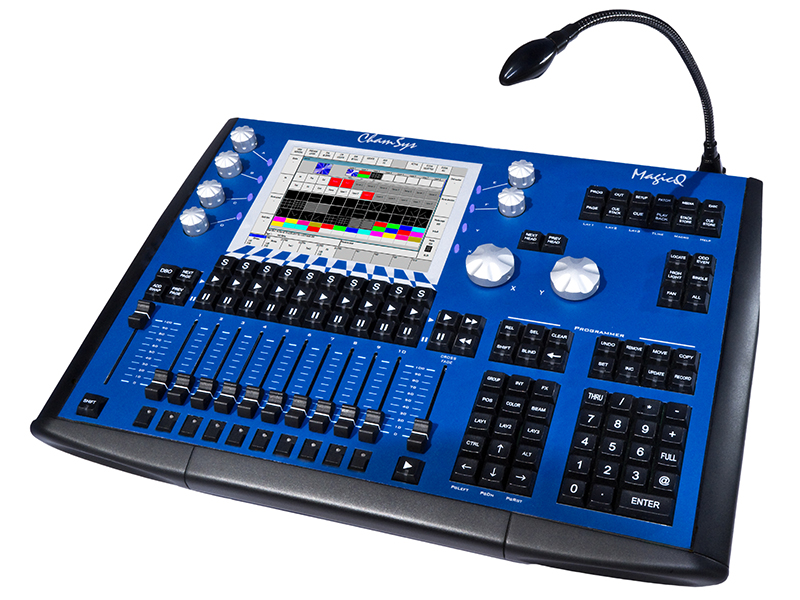

MagicQ MQ60
- 12 Universes (64 in net wing mode with additional PC/Mac)
- Complete Lighting Console
- Fits Hand Luggage Restrictions
- Silent operation
- Free MagicVis visualiser app
- Free MagicHD media player app
- Internal Ethernet Switch
- In-built UPS
- External touch screen support
- Includes MIDI and Audio support
- Designed and manufactured in the UK
Universes: 12 (up to 64 in net wing mode with additional PC/Mac)
Channels: 6144
Number of fixtures: Up to 6144
Cues: 5000
Cue stacks: 2000
Palettes: 3096
Groups: 5000
Numbers of shows: Virtually unlimited
Media server support: 50 (each different content)
Encoders: 8
Faders: 12
Direct DMX ports: 4
Network ports: 4
External monitor: 1
Rear panel USB ports: 4
Front panel USB port: 1
Audio input (1 channel, 7 band)
RS232
Remote contact switch
MIDI Notes in/out
UPS
Desk lamp: 1, Dual Colour
Illuminated soft buttons
Dust cover
MagicQ MQ80
- 24 Universes
- 10 Playback faders, 200 Pages
- 20 Execute buttons
- 202 virtual playbacks
- Internal Ethernet Switch
- In-built UPS
- External monitor (full HD, can be touch)
- Includes MIDI, Audio and Timecode input support
- Free MagicVis visualiser app
- Free MagicHD media player app
- Designed and manufactured in the UK
Universes: 24
Channels: 12288
Number of fixtures: Up to 12288
Cues: 5000
Cue stacks: 2000
Palettes: 4096
Groups: 5000
Numbers of shows: Virtually unlimited
Media server support: 50 (each different content)
Encoders: 8
Faders: 13
Direct DMX ports: 4
Network ports: 4
External monitor: Up to 1920×1200
USB ports: 6 (including 1 on front panel for easy access)
Audio input (1 channel, 7 band)
MIDI Notes in/out
LTC input
Inbuilt UPS
Variable Speed Fan
Dual Colour Desk lamp
Illuminated soft buttons
Dust cover
Power input: 110 to 240 VAC
Width: 570mm (22.5″)
Depth: 405mm (15.9″)
Height: 110mm (4.3″)
Weight: 8kg (17.5lb)
Flightcased Dimensions:
Width: 660mm (26″)
Depth: 505mm (19.9″)
Height: 235mm (9.3″)
Weight: 20kg (44lb)
Padded Bag Dimensions:
Width: 640mm (25.2″)
Depth: 460mm (18.1″)
Height: 225mm (8.9″)
The MQ80 uses a 12v 0.8Ah Sealed Lead Acid Battery.

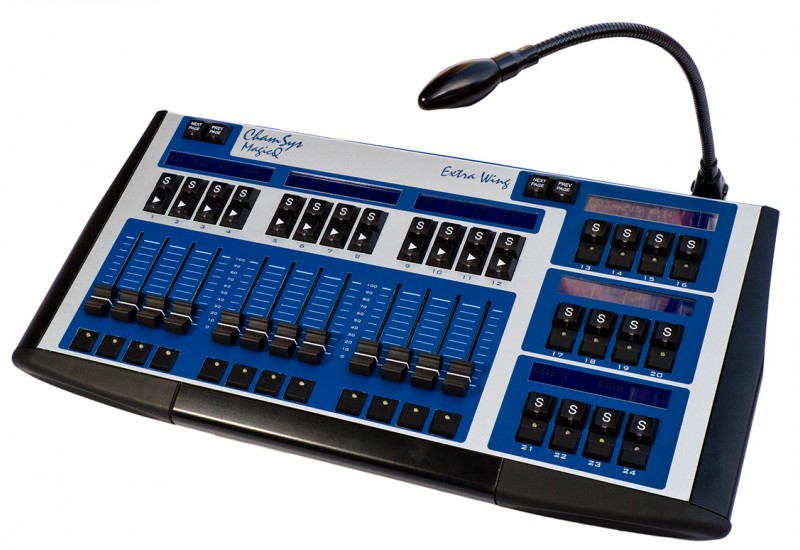

MagicQ Extra Wing Compact
- 12 Playback Faders
- 12 Playback Execute Buttons
- Full Electronic Legending
- Connect to MagicQ Compact and Full Size Consoles
- Connect to MagicQ PC or Mac
- Up to 8 Wings per System
- Dual Playback Sections
- Split Playback Pages
- Separate Page Up/Down Buttons
- USB Connection
- Dimmable LED Desk Lamp
- Built in PSU
- Designed and manufactured in the UK
LCD Displays: 6
Faders: 12
Flash Buttons: 24
Playback Buttons: 40
Dimmable LED Console Lamp: 1 Dual Colour
Universal Power Supply: 110 to 240 VAC
