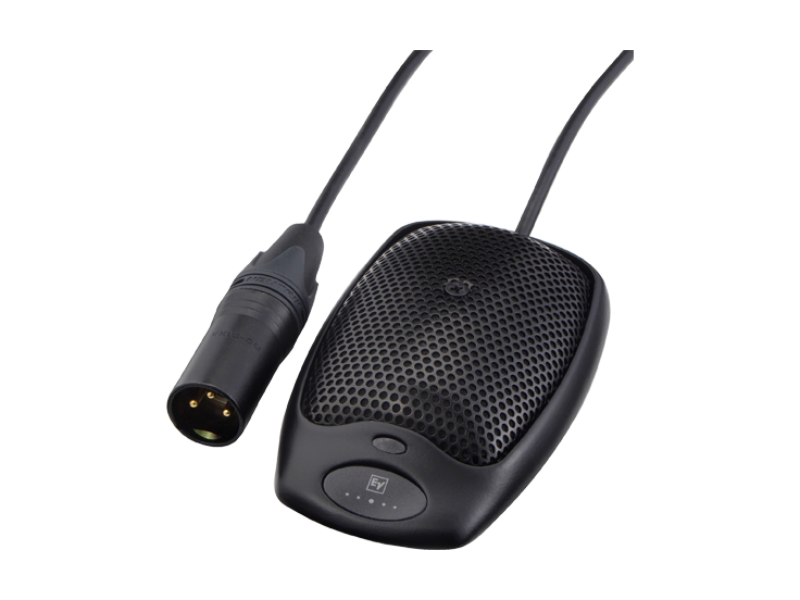

PC Boundary

The PC Boundary is a very low-profile area microphone that can be used on any surface and with virtually any mic mixer. Featuring multiple on-board polar patterns—three directional and one omni—the PC Boundary is ideal for any installation where premium-grade area coverage is required.

Savybės

  • Easy switching between omni, cardioid, supercardioid, or figure “8” polar patterns
  • Versatility for different acoustic environments
  • Consistent microphone voicing across all four patterns
  • Easy-to-use mute switch, programmable for either latching on/off or momentary operation

Specifikacija

Case Material Steel
Connector Type 3-pin XLR
Element Dual condenser (back-electret)
Finish Non-reflective camera black
Frequency Response 50 – 20,000 Hz
Impedance, Low-Z balanced 200 Ω
Mic Type Boundary
Open Circuit Voltage 31.5 mV/Pascal
Polar Pattern Omni, Cardioid, S-cardioid & Figure 8
Power Requirement 12 – 52 VDC
