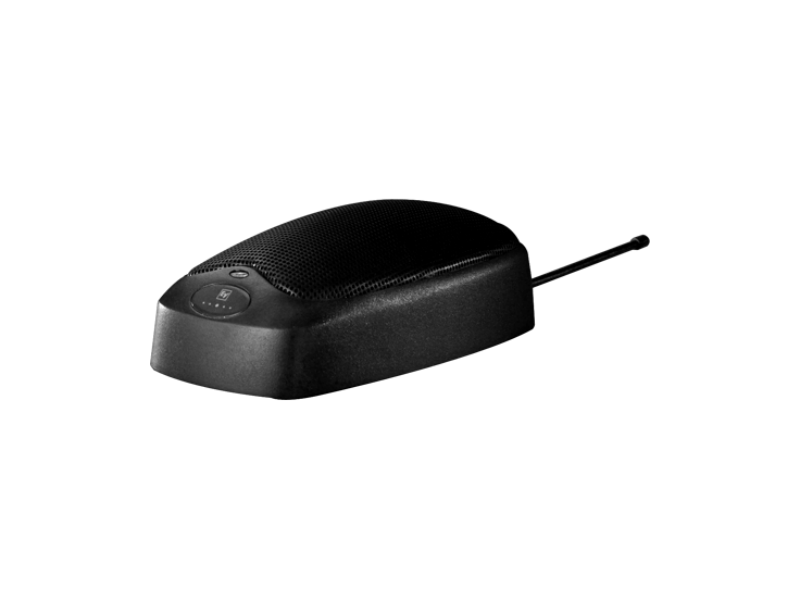

PC Boundary Satellite
The PC Boundary Satellite is a low-profile area microphone that can be used on any surface and is designed to integrate most Electro-Voice and Telex wireless bodypack transmitters. Featuring the identical polar pattern, filter, and mute-switch functionality as its wired counterpart, it is ideal for any wireless installation requiring premium-grade area coverage. (Note that the R300 bodypack transmitter will not work with this microphone.)
Savybės
- Accepts EV (REV, RE2, RE2PRO) and Telex (FMR or SAFE1000) bodypack transmitters
- Easy switching between omni, cardioid, supercardioid, or figure “8” polar patterns
- Versatility for different acoustic environments
- Easy-to-use mute switch, programmable for either latching on/off or momentary operation
Specifikacija
Case Material | Steel |
Connector Type | TA4F |
Element | Dual condenser (back-electret) |
Finish | Non-reflective camera black |
Frequency Response | 50 – 20,000 Hz |
Impedance, Low-Z balanced | 1000 Ω |
Mic Type | Boundary |
Open Circuit Voltage | 17.8 mV/Pascal |
Polar Pattern | Omni, Cardioid, S-cardioid & Figure 8 |
Power Requirement | 5 VDC (via optional body pack) |
