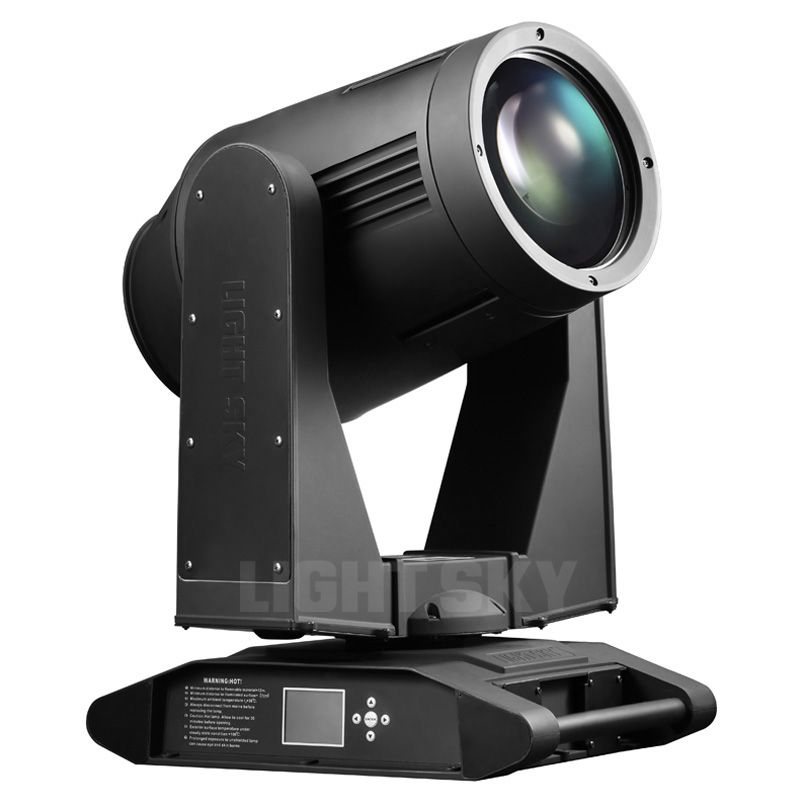

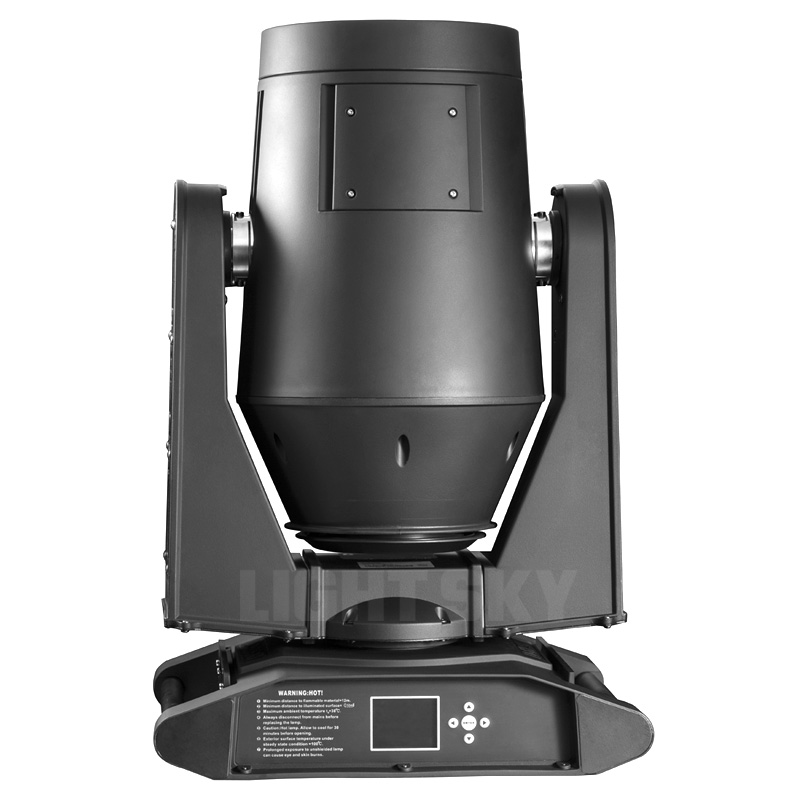

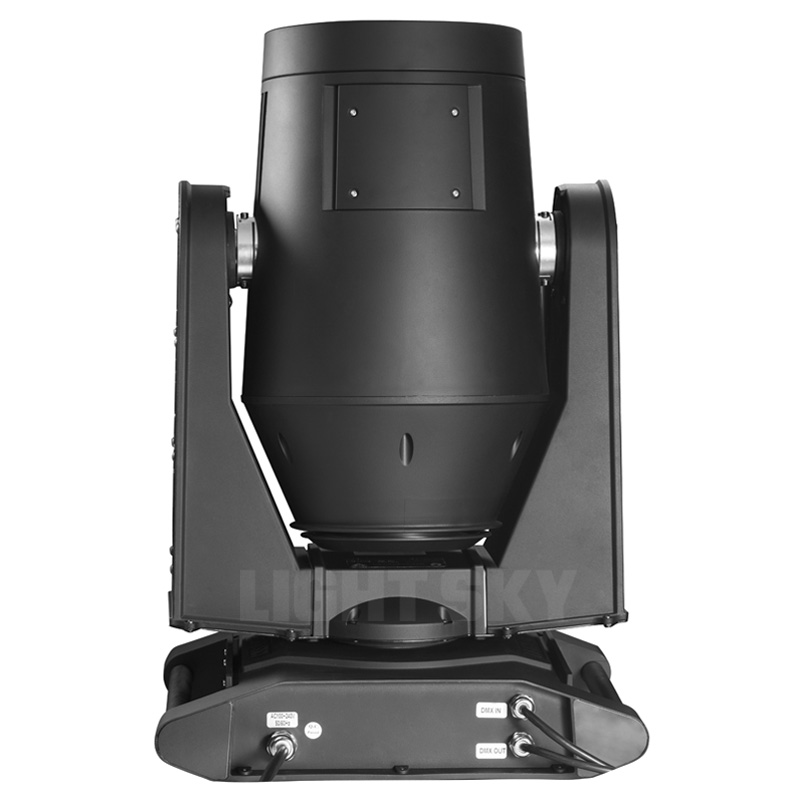

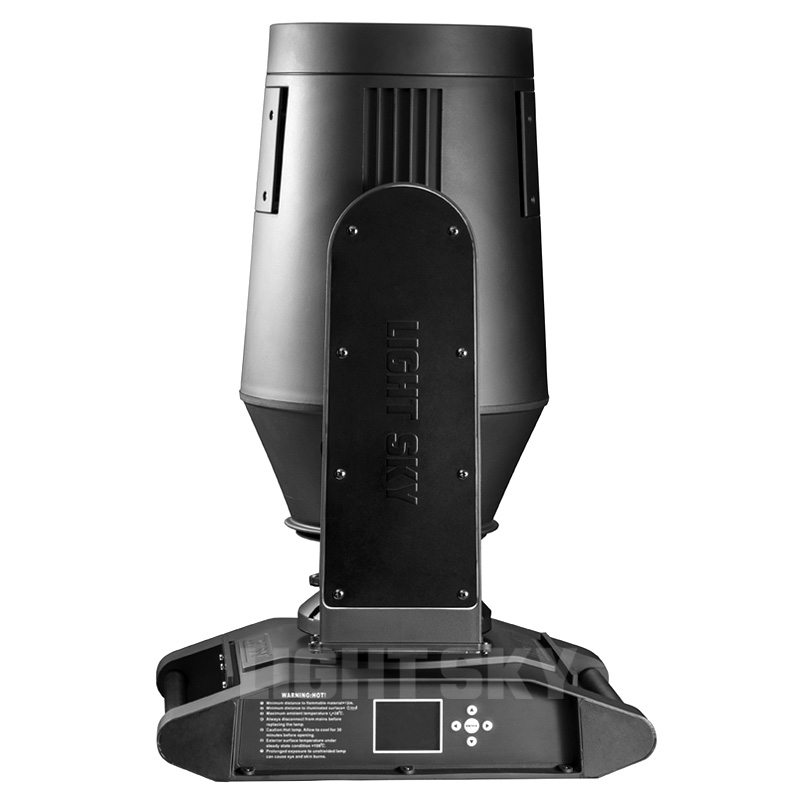

IP3000
Pirmasis ir vienintelis pasaulyje vandeniui ir oro sąlygoms atsparus 440W valdomo judesio prožektorius.
Techniniai parametrai
Light and power supply system | |||
Voltage | AC100~240V/50-60HZ | Ballast | 440W OSRAM E-ballast |
Power | 628W | Average lifespan | 1200 hours |
Lamp | OSRAM SIRIUS HRI 440W S | Focus | linear electronic focus |
Lamp temperature | 7500K | Dimmer | Super smooth dimmer |
Color temperature | 2500K、3200K (Optional) | Strobe | Independent strobe, 0.5 to 20 times/ seconds |
Color/Pattern/Effect | |||
Color wheel | CMY+11 color filter wheel | Beam angle | 2° |
Fixed gobo wheel | 11+1+animation range | Frost | 45°(standard) , 6°(optional) |
Prism | 16 facet +32 facet (standard); 3 facet +8 facet (Option) |
Control system | |||
Control mode | DMX/ART-NET/RDM/Single Mode/Master/Slave mode/ Wireless DMX512(Optional) |
Pan/Tilt | Pan: 540 degree , Tilt : 240 degree |
Channel | Simple channel : 20 CHS, Standard channel : 24 CHS |
Pan/Tilt speed | Pan: 2.9 seconds/ 540 degree, Tilt : 1.5 seconds/ 240 degree |
Appearance parameters | |||
Structure | Independent shape design PA66 plastic material, Anti UV, anti-aging, high temperature resistance |
A single carton size | 450X430X750(mm) |
IP Rate | IP44 | N.W / G.W | 23KG / 29.5 KG |
Size | 390×300×602(mm) | 2Pcs to a Flycase | 940X635X845(mm) |
Net weight | 23KG | N.W / G.W | 46KG / 96 KG |
Other function | |
Other feature | Display board has record function, which can record lamp using time ,fan’s speed 100W power would lower automatically under full shutter condition |
Customizable parts | Customizable parts: lamp, gobo , color, LOGO, Package , lens degree etc .but the mini order of OEM is: moving head light not less than 50 pcs ,LED light not less than 100pcs .the leading time would 15 to 30 days longer than normal order . |
DMX Standard Channel |
Channel function | Standard 24 CHS | Simple 20 CHS | Channel function | Standard 24 CHS | Simple 20 CHS |
Cyan | 01 | 01 | Blank | 13 | ——- |
Magenta | 02 | 02 | Prism | 14 | 10 |
Yellow | 03 | 03 | Prism rotation | 15 | 11 |
Color temperature | ——- | 04 | Frost | 16 | 12 |
Color | 05 | 05 | Focus | 17 | 13 |
Blank | 06 | ——- | Pan | 18 | 14 |
Shutter | 07 | 06 | Pan fine | 19 | 15 |
Dimmer | 08 | 07 | Tilt | 20 | 16 |
Dimmer fine | 09 | 08 | Tilt fine | 21 | 17 |
Static gobo | 10 | 09 | Function | 22 | 18 |
Blank | 11 | ——- | Reset | 23 | 19 |
Blank | 12 | ——- | Lamp control | 24 | 20 |
