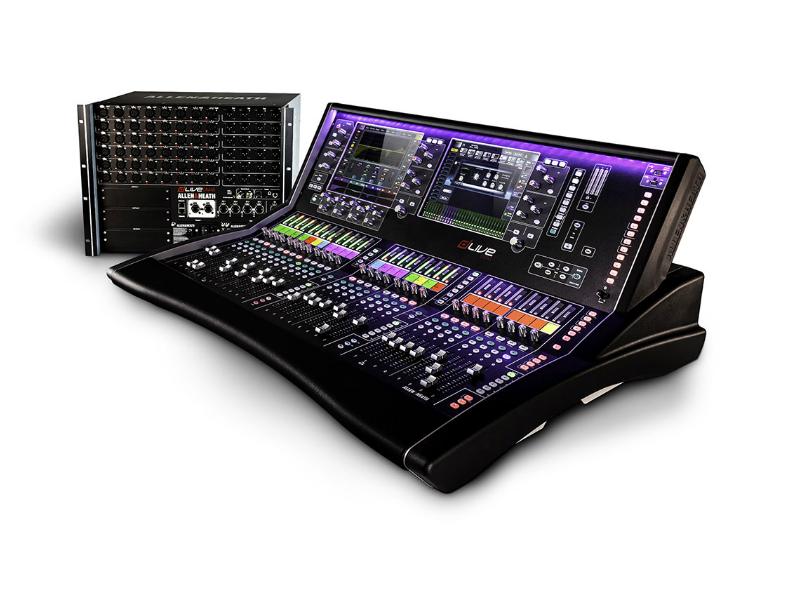

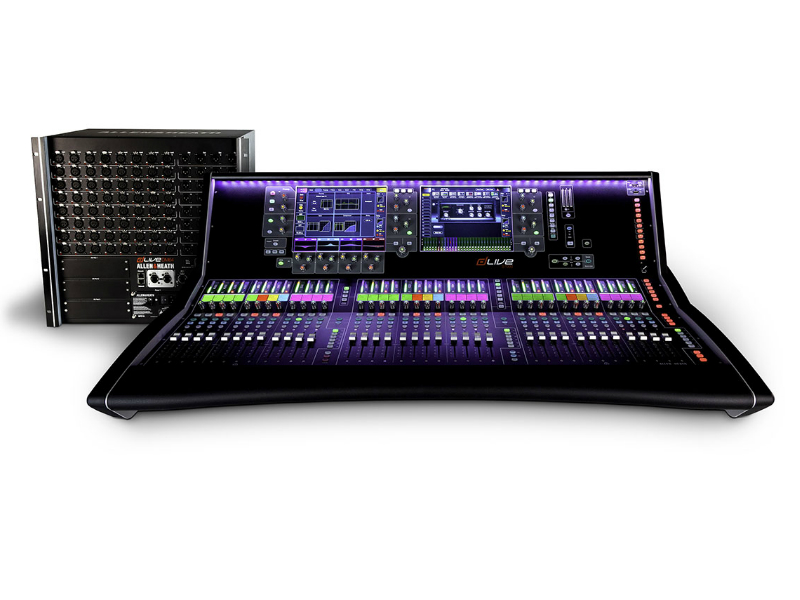

Allen & Heath dLive

Distributed system with separate MixRack and Surface
DX32 modular expansion racks for flexible I/O
DEEP processing – powerful embedded plugins
Pro touring grade construction
Redundant hot swappable power supply common across the range
Redundant connections throughout
Up to 814 system inputs and 824 outputs
Up to 5 audio networking option cards including Dante, Waves SG, ACE, MADI
Compatible with ME personal mixing system

dLive MixRacks

  • Choice of 3 sizes (32, 48 or 64 mic inputs)
    XCVI 160×64 FPGA core
    96kHz sample rate
    Variable bit-depth for ultimate precision and noise performance
    Virtually infinite mix headroom thanks to 96bit accumulator
    Class leading, ultra-low latency < 0.7ms
  • 128 Input Channels with full processing
  • 64 Mix Outputs with full processing
  • Configurable 64 bus architecture (group, FX, aux, matrix, mains)
  • LR, LCR and up to 5.1 mains mode
  • 16 RackFX with dedicated stereo returns
  • New active pad preamp design for extra transparency

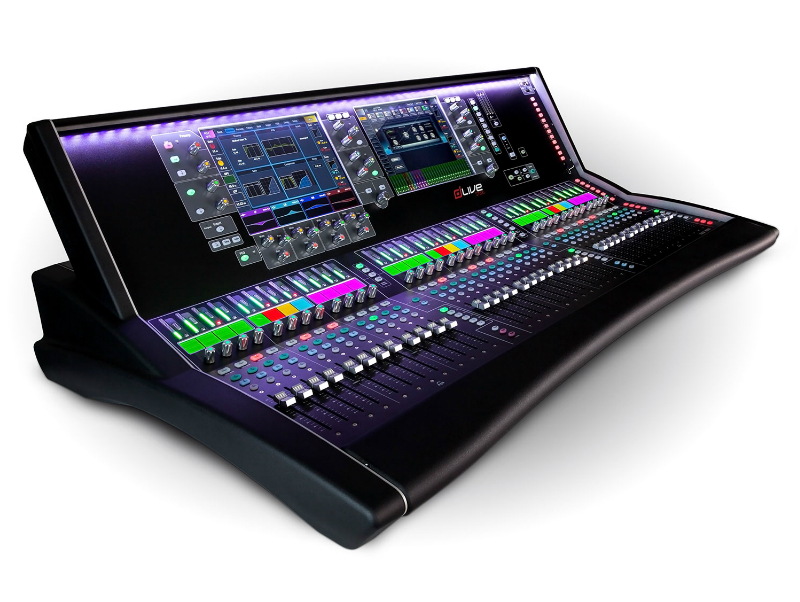

dLive Surfaces

  • Choice of 3 sizes (20, 28 or 36 faders)
  • Fully assignable layout – up to 216 fader strips
  • Harmony UI integrates screen and wrap-around controls
    Single or twin 12” capacitive touchscreen
    Gesture control – pinch, swipe, drag ‘n drop
    Configurable widget areas for Scenes, meters, FX and more
    3 pages of 6 assignable rotaries per screen
  • 26 assignable SoftKeys
  • Comprehensive multipoint metering

Control

  • Networked wired or wireless control
  • Editor software for online or offline PC/Mac editing
  • dLive MixPad and OneMix apps
  • IP range of PoE remote controllers
  • TCP/IP protocol for third party integration
  • Extensive User Permissions and Profiles
  • Comprehensive Scene management with Cue List, multiple Scene Update,
  • Crossfades, Recall Filters, Embedded Recalls, Auto Store, Recall Undo
